Aisle-Lighter
High Bay
Advanced Aisle Optics for Optimal Light Delivery
Ultra High Efficacy
160 lm/W efficacy for increased energy savings, better ROI, and faster payback periods. May qualify for higher rebate incentives.

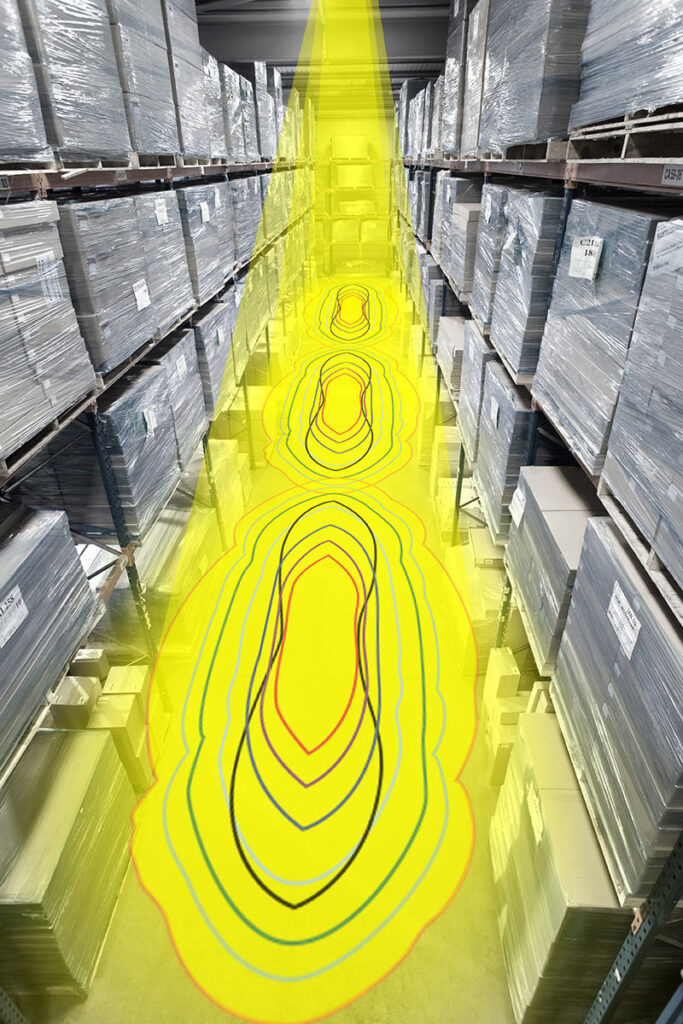

Advanced Aisle Optics
Designed specifically for warehouses with aisles, precision-formed optics covers a longer area through the aisle but focuses light narrowly to reduce wasted light.
Deep Energy Reduction
Delivers light where you need it and not anywhere else. Reducing wasted light means significantly less wattage needed and/or reduced fixture count.

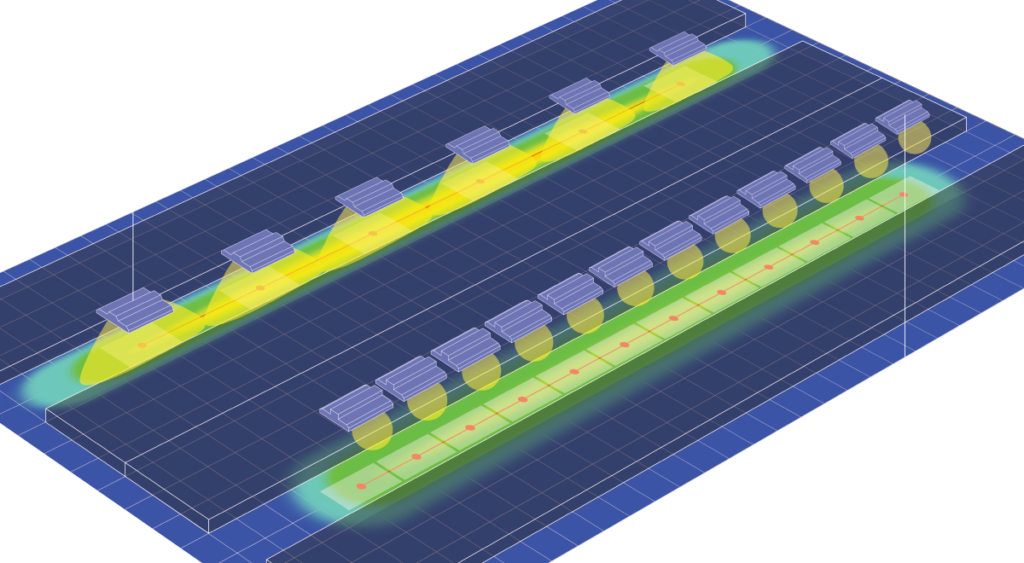

ILB vs Standard LED high bays

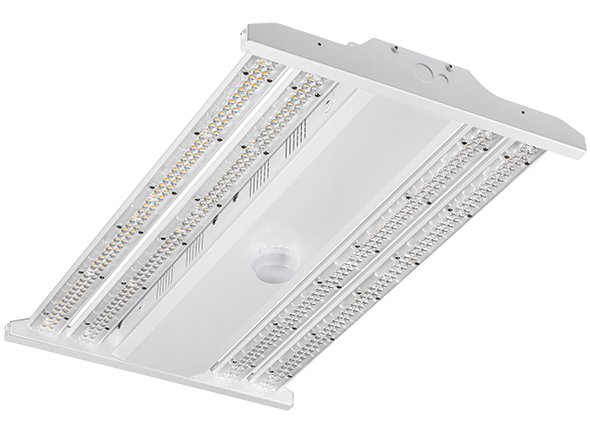

ILB High Bay
3x High Bays

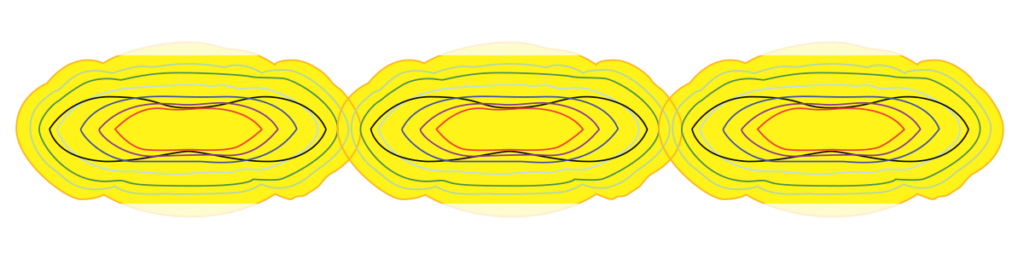

Aerial View
| Details | ILB-160 | ILB-125 | ILB-75 |
|---|---|---|---|
|
RATED WATTAGE |
160 |
125 |
75 |
|
TESTED WATTAGE (W) |
154 |
127 |
72 |
|
DELIVERED LUMENS (lm) |
21841 |
19023 |
10991 |
|
QTY RATIO (ILB:STANDARD) |
1:2 |
2:3 |
1:1 |
|
TOTAL WATTAGE |
154 |
254 |
72 |
|
AVERAGE FC |
22.11 |
22.98 |
21.87 |
|
ENERGY SAVINGS |
52.16% |
44.44% |
51.85% |

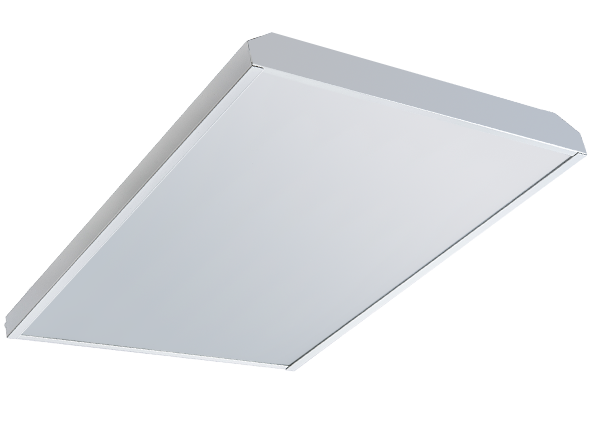

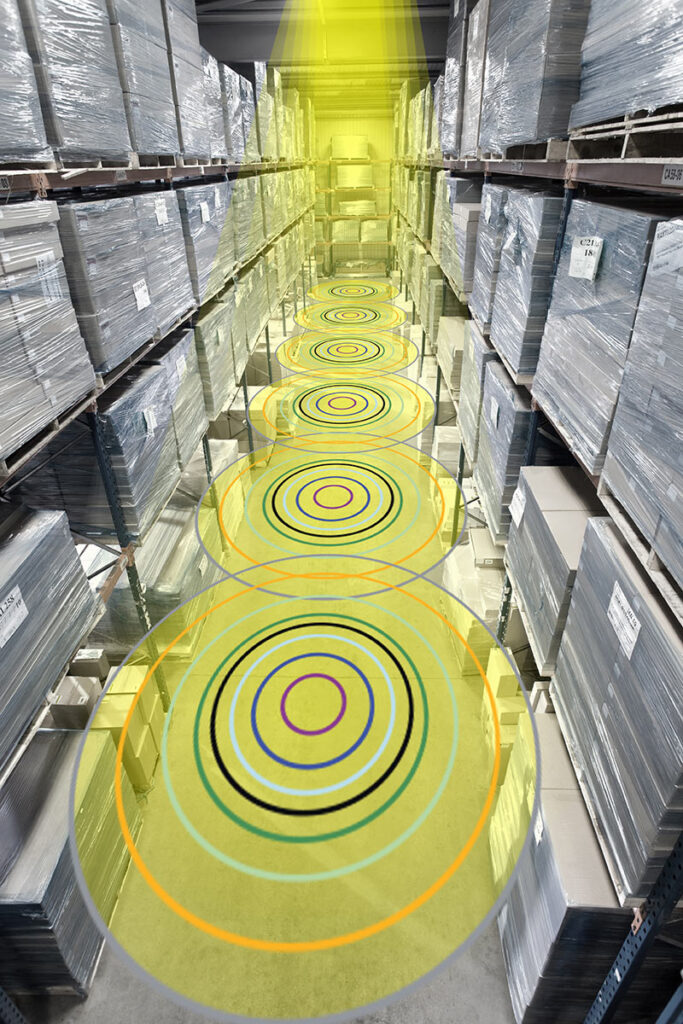

Standard High Bay
6x High Bays

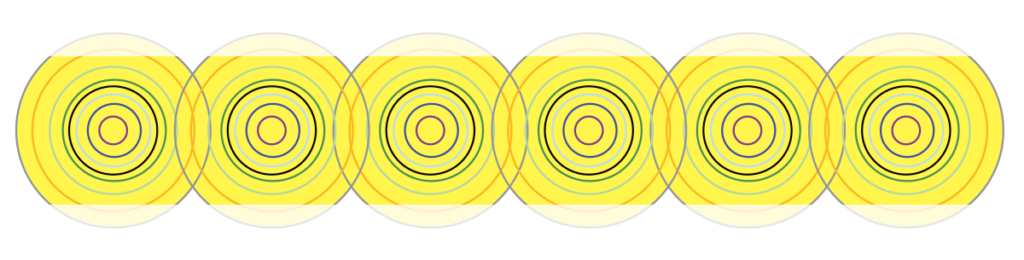

Aerial View
| Details | STANDARD HIGH BAY |
|---|---|
|
RATED WATTAGE |
162 |
|
TESTED WATTAGE (W) |
159.3 |
|
DELIVERED LUMENS (lm) |
20498 |
|
QTY RATIO (ILB:STANDARD) |
See ILB Chart |
|
TOTAL WATTAGE |
324 |
|
AVERAGE FC |
21.87, 24.2 |
|
ENERGY SAVINGS |
See ILB Chart |

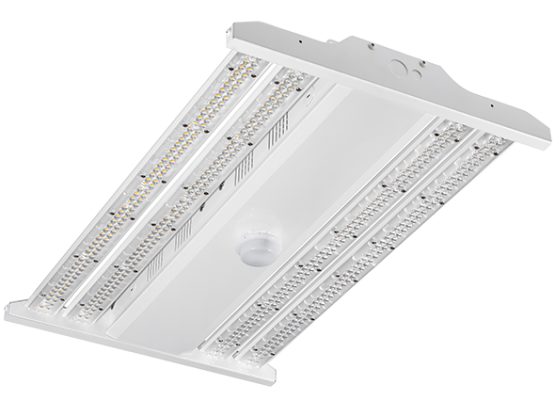

Plug & Play Sensor
Energy Savings
Energy Savings
Lumen Packages
75W
75W
5000K
161 lm/W
12075lm
125W
125W
5000K
161 lm/W
20125lm
160W
160W
5000K
161 lm/W
25760lm
Specification Features
Advanced Optics
Precision formed optics delivers light efficiently in warehouse aisle applications. Less wasted light on racks and longer light distribution down aisles.
Sensor Ready
Plug and play sensor available, making field installation of sensors fast and easy. Slashes energy consumption even more.
Reduce Fixture Count
With advanced optics for warehouse aisles, the ILB allows for less luminaires to be used compared to high bays with normal optics, meaning lower project cost, lower energy demand, and much improved ROI.
Low-Profile Design
Slim form factor for easy shipping, handling, storage, and installation. Hedge against volatility in shipping and storage costs.
