RPC Series

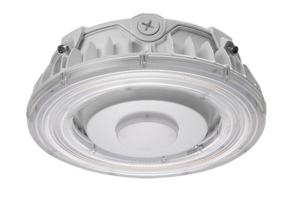

Round LED Parking Canopy Luminaire

The Aleo RPC™ Series combines energy-efficiency, advanced optical control, and modern slim profile aesthetics to deliver enhanced performance to parking garage and parking structure applications. Ideal for environments seeking higher light levels and improved safety, security. Rugged die-cast housing provides advanced thermal management for long life and weather-proof compartment to withstand challenging environments.

APPLICATION

Parking garages, parking structures, drive-ways, solar canopies.

FEATURES AND BENEFITS

  • Aggressive Energy Savings
  • Precision-Engineered Optics for enhanced light distribution
  • Multi-level sensor available
  • Rugged construction and design
  • Long life, reduced maintenance
  • Wet-Location, IP66 Rated
  • DLC QPL for Parking Garage Luminaires
  • Convenient J-box or Stem/Pendant Installation

Rugged, die-cast housing with advanced thermal management system ensures reliability and durability. Weather-proof, gasketed driver compartment protects electronics against environmental elements.

Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features universal voltage (120-277V) for convenient installation.

Luminaire comes standard mounting plate for quick and easy installation.

Precision-formed optical lens system improves safety and security by delivering high-efficiency illumination with precise optical distribution. Type IV distribution comes standard.

UL Listed. All components have UL certification.

7-year Limited Warranty. See warranty documentation for more information.

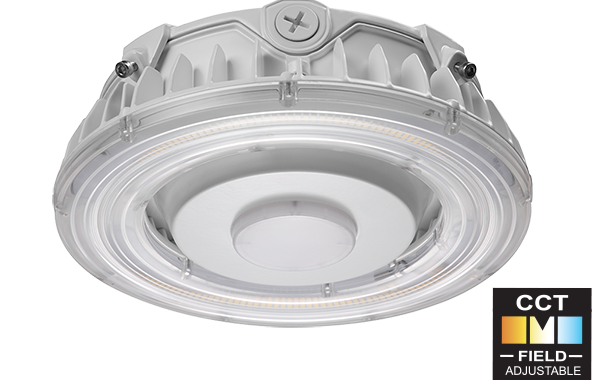

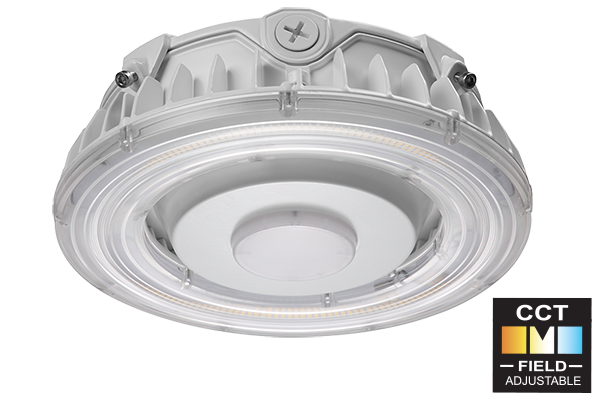

Increased versatility and reduced inventory burden. Color Temp. can be adjusted in the field by selecting (3) different CCTs via switch on driver box.

Model No. Nom. Wattage 3000K Lumens 4000K Lumens 5000K Lumens
RPC-40/CT 39W 4425 5287 4992
RPC-55/CT 53W 6489 7546 7194
