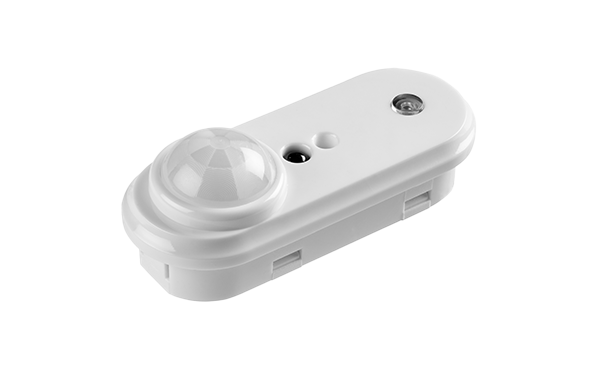

SPIR-OSDL/BT-PP3-DC-310
AleoBlue Wireless Bluetooth PIR Occ. Sensor w/ Daylight Harvesting
The SPIR-OSDL/BT-PP3-DC-310 combines occupancy sensing, daylight harvesting, 0-10V dimming and Bluetooth® mesh into a convenient, plug and play, field installable sensor. This advanced sensor brings greater controllability, energy savings, and intelligence to high bay lighting. Utilizing a snap-in quick connector, the sensor can be easily installed in the field and is compatible with many Aleo indoor luminaires, reducing lead times and labor cost.
APPLICATION
Indoor Applications: Open offices, individual offices, conference rooms, classrooms, retail stores, hospitals, lobbies
FEATURES AND BENEFITS
- Bluetooth mesh SIG
- PIR sensing with daylight harvesting
- Built-in 25mA o-10V sinking current output
- On-board antenna
- LED indicator for motion
- Cost-effective solution for energy savings
- Energy code compliance
- Robust mesh network
- Decentralized control (no single point of failure)
- Gateway-less configuration & operations
Warning
- DO NOT install with power applied to device
- DO NOT expose the device to moisture
Operation
- Check the “aleoBlue Commissioning User Manual” for settings and commissioning.
Warranty
5-year Limited Warranty. See warranty documentation for more information.
SPIR-OSDL/BT-PP3-DC-310 Dimensions
SPIR-OSDL/BT-PP3-DC-310 Wiring Diagram
Specification Sheet
