LED Square Canopy
Luminaire
Deep Energy Savings, Versatile, Slim Profile
Improved Aesthetics
Replace old, yellow lenses. Upgrade outdated CFL technology with LED while covering recessed squares and footprint.
Easy Installation
Luminaire can be mounted directly to junction box or surface mounted.
Energy Savings
Industry-leading energy savings for recessed canopies. Replaces PL CFL or HID lamps with deep energy-savings.
Lumen
Packages
10W
10W (nom.)
121 lm/W
1200 lm (nom.)
5000K / 4000K
20W
18W (nom.)
131 lm/W
2400 lm (nom.)
5000K / 4000K
36W
36W (nom.)
122 lm/W
4400 lm (nom.)
5000K / 4000K
Energy Savings
Energy Savings
Reduction in Maintenance Costs
Advanced Features
High Efficiency
Optimized system delivers up to 131 lm/W, resulting in increased light output and reduced energy consumption.
High Quality Engineering & Manufacturing
Engineered to deliver performance, manufactured to last. Intensive quality control, precision manufacturing process, and experience component qualification ensure quality.
Better Quality Light
Low glare optics, high color quality (CRI>80), consistent color, and improved optical performance. Improves safety and security in outdoor walkways.
Enhanced Benefits
Deep Energy Savings
Replaces outdated HID and CFL technology for aggressive savings and incredibly attractive ROI and payback periods.
Reduced Maintenance Costs
Long life LED system reduces maintenance costs. Rated at 75,000 hours with a 7-year limited warranty, the LCP helps lower operating costs.
Lower Operating Cost
Extreme efficiency, dimmability, sensor-compatibility, and cooler operation reduces energy demand and increases energy savings.
Utility Rates Opportunities
Potential for faster payback and increased ROI with potential utility rebate qualifications to offset initial costs and decrease capital expenditure. Check with Aleo rep and local utility for details.
Performance Highlights
| Efficacy | Up to 131 lm/W |
| Rated Life | 75,000 hours |
| CRI | 70+, R9>0 |
| Dimming | 0-10V Continuous (10-100%) on 20W |
| Weather Proof | Damp-Location |
| Input Voltage | 120V-277V |
| Input Frequency | 50/60 Hz |
| Operating Temperature | -20C to 50C |
Certification & Warranty
-
ETL Listed
All components have ETL certification
-
DLC Premium
This series is listed as DLC 4.3 Premium, Stairwell and Passageway Luminaires.
-
Warranty
7-year Limited Warranty. See warranty documentation for more information.
-
Damp Location
Weather-proof compartment to withstand semi-covered outdoor environments. Perfect for covering existing square recessed openings.
Dimensions
Specification Features

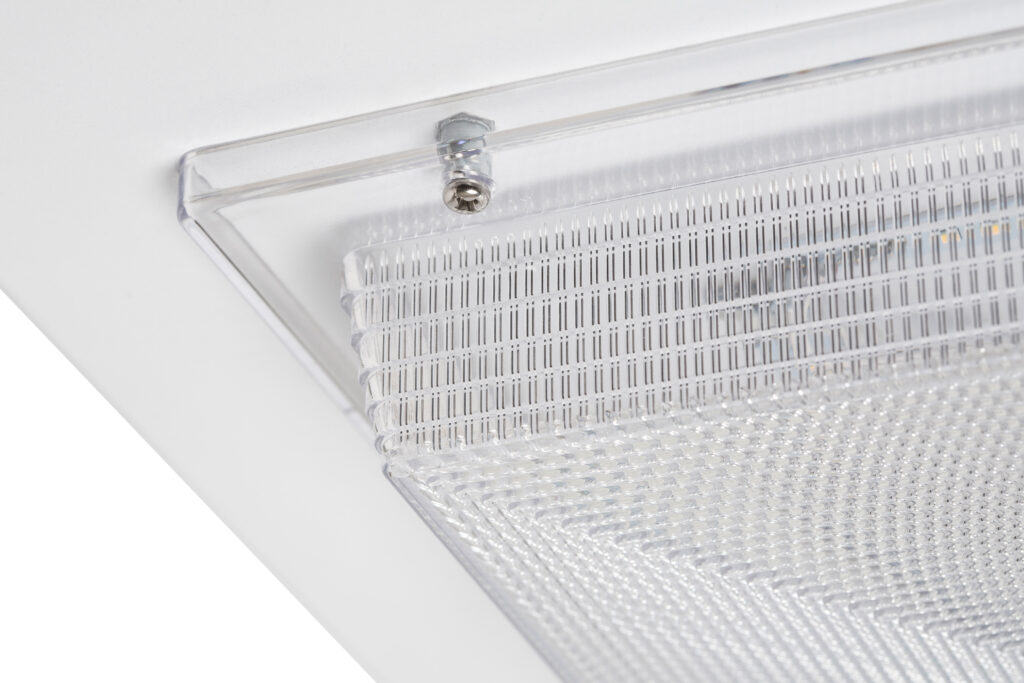

Optical Diffuser
Prismatic, square drop lens improves safety and security by delivering high-efficiency illumination with low glare, comfortable illumination.
Versatile Mounting Options
Luminaire can be mounted directly to surface junction box or surface mounted via keyhole slots on mounting plate. Covers existing 12” x 12” recessed square opening.
LED System
LCP Luminaire utilizes high-performance components to deliver industry-leading efficacy and reliability. Modular LED modules and driver allow for serviceability and maintenance.
Dimming
Continuous dimming (0-10V) comes standard (on the 20W). Suitable for use with dimmers, sensors, daylight harvesting and other control strategies to achieve deeper energy-savings and code compliance.
