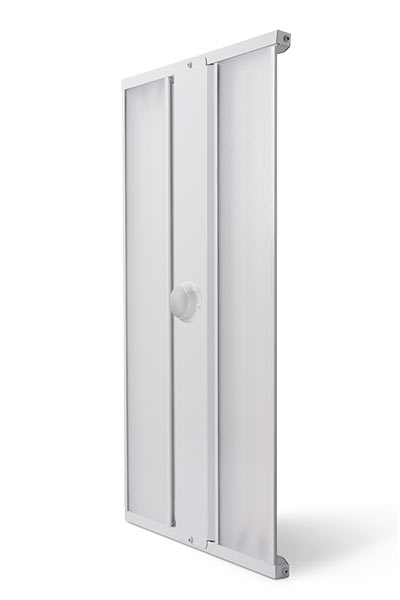

Ultra Efficient Linear

LED High Bay

Greater than 150LPW, High Performance, Advanced Controls

Wattage Flexibility

Offers extreme versatility with field-adjustable lumen output. Dial in deeper energy savings and improved ROI.

Ultra High Efficacy

Industry-leading Efficacy greater than 150 lm/W pushes the boundaries in performance with high bay technology.

Plug & Play Sensor

Field install occupancy sensor offers deep energy savings and simple code compliance. SimplBlue wireless option available.

Lumen

Packages

Form Factor Model No. Nom. Wattage 4000K Lumens 5000K Lumens
1.5′
XLB1-100UX/8xx/F UXE G4 ECO (SR/RC)
75
12075
12150
95
14915
15010
100
15100
15200
2′
XLB2-160UX/8xx/F UXE G4 ECO (SR/RC)
120
19080
19200
140
21700
21840
160
24320
24480
XLB2-200UX/8xx/F UXE G4 ECO (SR/RC)
170
26860
27370
190
29260
29830
210
31710
32340

4′

XLB4-270UX/8xx/F UXE G4 ECO (SR/RC)
230
37490
37720
260
41600
41860
290
45240
45530

XLB UX

High Bay

Series

Advanced Features

High-Performance system delivers 150 lm/W for Aggressive Energy Savings.

Engineered and manufactured to last. Backed by a 7-year limited warranty and rated at 75,000 hours of life, the XLB UX slashes maintenance costs and operating expenses.

Reduced glare, high color quality (CRI>82), consistent color, and improved optical performance.

Enhanced Benefits

The XLB UX high bay vastly reduces energy demand and carbon footprint of warehouse facilities and operations.

Super long life luminaire and components result in dramatic reductions in maintenance costs. Easily accessible driver compartment increases replacement and maintenance convenience.

Extreme efficiency, dimmability, sensor-compatibility, and cooler operation reduces energy demand and increases energy savings.

Potential for faster payback and increased ROI with potential utility rebate qualifications to offset initial costs and decrease capital expenditure. Check with Aleo rep and local utility for details.

Performance Highlights

Efficacy > 150 LPW (typ.)
Rated Life 75,000 hours
CRI 82+, R9 > 0
Dimming 0-10V Continuous (10-100%)
Input Voltage 120V-277V
Input Frequency 50/60 Hz
Operating Temperature -20°C to 50°C

Certification & Warranty

Dimensions

Specification Features

Optical Diffuser

Up to 150 lm/W and DLC Premium QPL listed for delivers increased savings, optimized ROI, and faster payback periods.

Slim Profile

Slim form factor for easy shipping, handling, storage, and installation. Hedge against volatility in shipping and storage costs.

Plug & Play Sensor

Plug and play sensor available, making field installation of sensors fast and easy. Slashes energy consumption even more.

Wireless Bluetooth Option

Plug and Play SimplBlue wireless Bluetooth sensor available for network lighting controls capabilities, easy code compliance, LLLC rebate qualification.

Construction

Rugged and durable construction withstands warehouse environments. Luminaire features matte white durable finish.

Dimming

Continuous dimming (0-10V) comes standard. Suitable for use with dimmers, sensors, daylight harvesting and other control strategies to achieve deeper energy-savings and code compliance.

Energy Savings

0%

Energy Savings

lm/W
0
Hours Rated Life
0
0%

Reduction in Maintenance Costs

Plug & Play Sensor

Easy Field Install Occupancy Sensor with Daylight

General Application
