LPA UX Series | Aleo Lighting

Architectural

Linear Pendant

Refined Yet Distinct

Seamless Design

Seamless modern design, sleek profile. Combines excellence in design with solid craftsmanship.

Visually Pleasing

Enhances and elevates modern spaces with superior illumination. Increase the appeal with modern, clean lines.

Versatile

Field Adjustable Color Temp, Lumen Output, and Up/Down light makes specification and procurement foolproof.

The All-In-One

Luminaire

CCT

Field Adjustable

Up/Down Light

Functionality

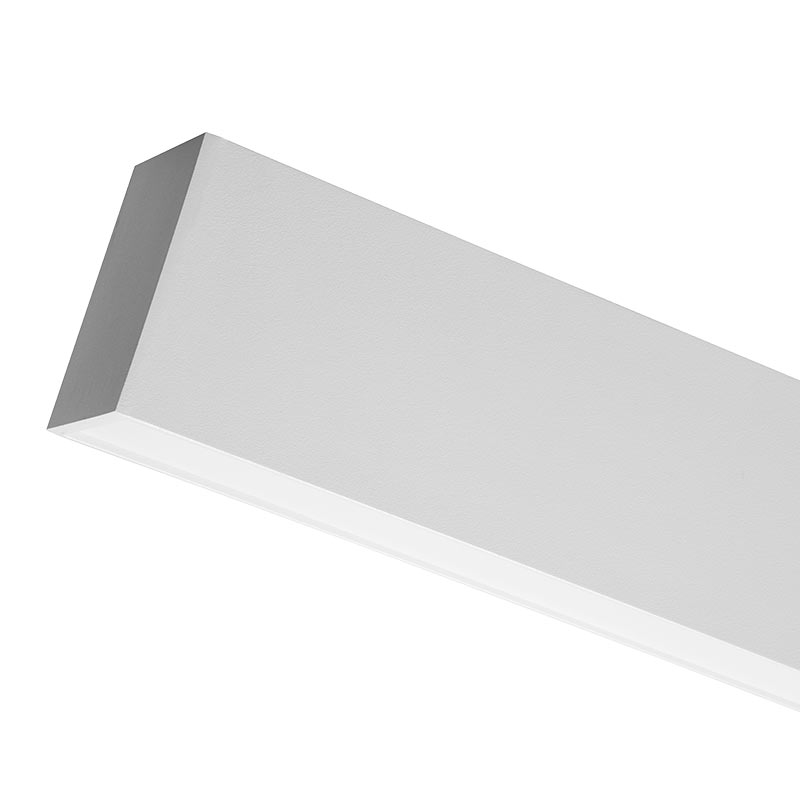

Finish

Options

LUMEN PACKAGES

Form Factor	Model No.	Nom. Wattage	3000K Lumens	3500K Lumens	4000K Lumens
4'	LPA-4UX-50/8CT (YYY) G2	30	3810	4110	3900
		40	5040	5440	5160
		50	6250	6750	6400
8'	LPA-8UX-100/8CT (YYY) G2	60	7620	8220	7800
		80	10080	10880	10320
		100	12500	13500	12800

LPA

Architectural Linear Pendant

Seamless

Design

Advanced Features

High Efficiency

Optimized LED system that delivers up to 137 lm/w, enabling superior performance, increased light output and reduced energy consumption.

High Quality Engineering & Manufacturing

Engineered to deliver performance, manufactured to last.
Intensive quality control, precision manufacturing process,
and experience component qualification ensure quality.

Better Quality Light

Reduced glare, High color quality (CRI 80+) and Improved optical performance. lens provides protection and high efficiency transmission of light.

Enhanced Benefits

Reduced Maintenance Costs

Long life LED system reduces maintenance costs. Modular LED engine and driver allows for convenient servicing and replacement, eliminating the need to replace luminaire housing.

Lower Operating Cost

Extreme efficiency, dimmability, sensor-compatability, and cooler operation reduces energy demand and increases energy savings.

Deep Energy Savings

The high efficacy luminaire offers the advantages of considerable energy saving to replace traditional fluorescent systems. The combination of performance and value presents incredibly attractive ROI and payback periods.

Utility Rates Opportunities

Faster payback and increased ROI with potential utility rebate incentives to offset initial costs and decrease capital expenditure. Check with Aleo rep and local utility for details.

Performance Highlights

Efficacy	Up to 137 LPW (typ.)
Rated Life	75,000 hours
CRI	80+
Dimming	0-10V Continuous (10-100%)
Input Voltage	120V-277V
Input Frequency	50/60 Hz
Operating Temperature	-20°C to 50°C

Certification & Warranty

Dimensions

Specification Features

Construction

Top of the line craftsmanship using extruded aluminum channel housing. Specification-grade powder coat finish and end-cap construction. Modern design with no visible fasteners.

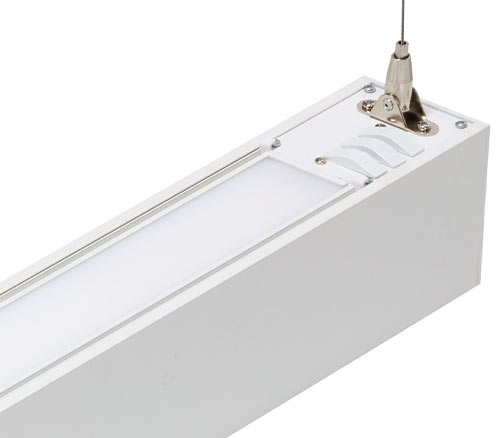

Versatile Mounting Options

Suspended or surface-mount via mounting clips. Comes standard with aircraft hanging kit and canopy kit.

Dimming

Continuous dimming (0-10V) comes standard. Suitable for use with dimmers, sensors, daylight harvesting and other control strategies to achieve deeper energy-savings and code compliance.

LED Systems

LPA Luminaire utilizes high-performance components to deliver industry-leading efficacy and reliability. Modular LED modules and driver allow for serviceability and maintenance.
