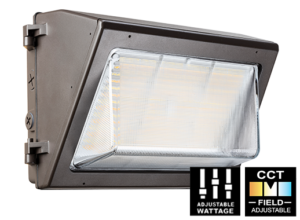

WPE UX Series

LED Wall Pack Luminaire - CCT Select

The Aleo WPE™ UX Series combines energy-efficiency, high performance, and rugged construction with a familiar and traditional look to deliver enhanced performance to outdoor wall-mounted lighting applications. Rugged die-cast housing provides advanced thermal management for long life and weather-proof compartment to withstand challenging, outdoor environments. Traditional look helps to maintain familiar building aesthetics.

APPLICATION

Outdoor wall-mount applications. Building facade. Retail, commercial, industrial exteriors.

FEATURES AND BENEFITS

Attractive ROI
Low Profile, Slim Design
Rugged construction and design
Long life, reduced maintenance
Lower energy costs
High quality light
7-year limited warranty

Construction

Rugged, die-cast housing with advanced thermal management system ensures reliability and durability. Weather-proof, gasketed compartment protects electronics against environmental elements.

Electrical

Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features universal voltage (120-277V) for convenient installation. 0-10V continuous dimming.

Optical System

High performance LED platforms delivers high efficiency and long life. Prismatic glass lens designed for superior light distribution and uniformity. Type IV VS comes standard.

Installation & Mounting

Designed to be wall-mounted higher than 4-ft. from the ground. Luminaire to be mounted directly over standard 4” junction box (supplied by others) or surface mount and wiring connection through convenient 1/2” threaded conduit entry hub.

Certifications

UL Listed. All components have UL certification. DLC QPL Premium

Photocell

Comes Standard with built-in dusk-to-dawn photocell.

Warranty

7-year Limited Warranty. See warranty documentation for more information.

Field-Adjustable CCT / Wattage

Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by selecting (3) different wattages and (3) different CCTs via switch inside the housing.

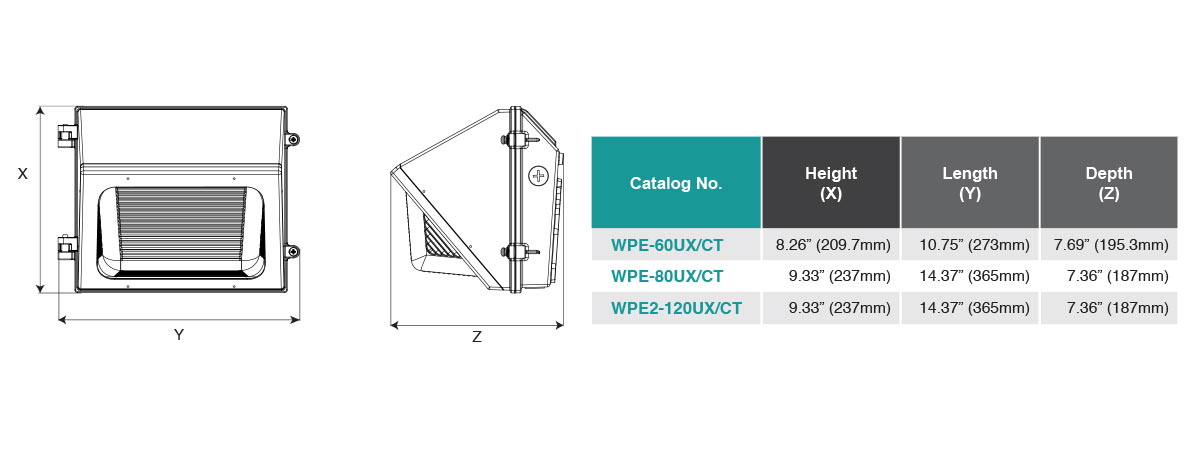

Line Drawing

Specification Sheet

WPE UX Spec Sheet

Installation Guide

WPE UX Installation Guide

IES Files

WPE UX IES Files (ZIP)

Model No.	Nom. Wattage	3000K Lumens	4000K Lumens	5000K Lumens
WPE-60UX/CT	30	3,935.4	4,312.9	4,052.6
	45	5,843	6,405	6,018.9
	60	7,716.3	8,454.2	7,945.1
WPE-80UX/CT	50	8,018.6	8,627.5	8,178.6
	70	11,127	11,965.7	11,343.9
	80	12,588.2	13,538.1	12,827.8
WPE2-120UX/CT	80	12,500	13,460.2	12,733.8
	100	15,472.1	16,662.2	15,764.4
	120	18,381.5	19,797.4	18,732.4
