LSX Series
Super Slim LED Linear Strip Luminaire
The Aleo LSX Series Super Slim LED Linear Strip Luminaire delivers industry-leading performance with deep energy savings and continuous dimming. Low profile design offers easy handling and storage. This versatile luminaire produces energy-efficient, comfortable illumination for a myriad of applications.
APPLICATION
Excellent for general utilty applications: Parking garage, warehouse, offices, restrooms, storage units, stairwell.
FEATURES AND BENEFITS
- Attractive ROI
- Super Slim Profile
- Ideal for use with sensor and advanced controls
- Long life, reduced maintenance
- Lower energy costs
- High quality light
- 7-year limited warranty
Construction
Integral LED gear tray and reflector with driver on board allows for easy installation and handling. Luminaire features matte white durable finish. Diffuser requires no additional frame or fastener for easy installation.
Electrical
Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation.Comes equipped with luminaire quick-disconnect.
Installation & Mounting
Strip can be suspended or mounted via mounting brackets.
Controls & Dimming
Continuous dimming (0-10V) comes standard. Suitable for use with dimmers, sensors, daylight harvesting and other control strategies to achieve deeper energy-savings and code compliance. Fixture-integrated sensor accessory available: occupancy sensing with daylight cut-off.
Optical System
Reflector systems features highly reflective coating and delivers balanced, comfortable illuminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.
Certifications
UL Listed. All components have UL certification. UL Class 2. Driver: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2. DLC Premium
Warranty
7-year Limited Warranty. See warranty documentation for more information.

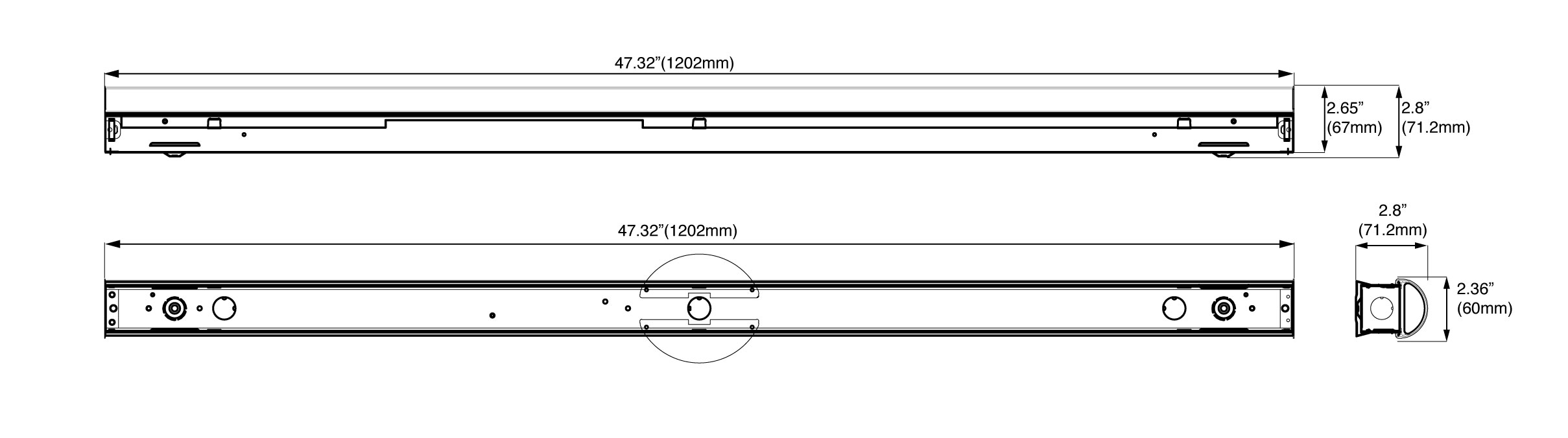

4' Line Drawing

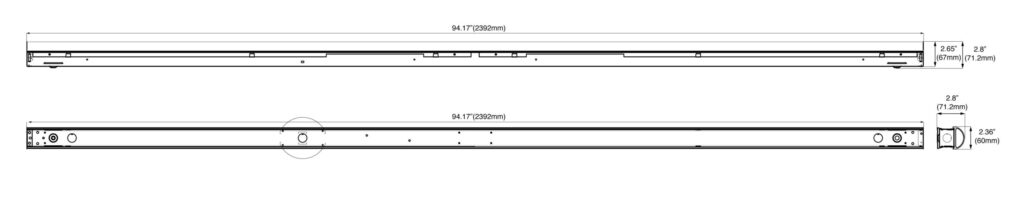

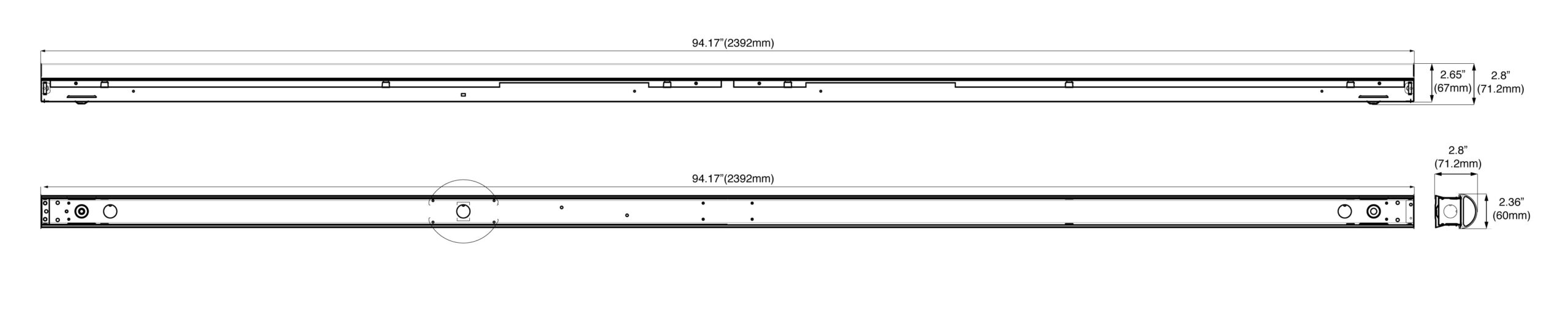

8' Line Drawing
| Form Factor | Model No. | Wattage | Lumens |
|---|---|---|---|
| 2′ length | LSX-2LE-10 XE G3 | 10W | 1200 |
| 4′ length | LSX-4HE-26 XE G3 | 26W | 3432 |
| 4′ length | LSX-4VHE-40 XE G3 | 40W | 5280 |
| 8′ length | LSX-8HE-65 XE G3 | 65W | 8450 |
| Model No. | Description |
|---|---|
| -OSDL/IR | Multi Level Occupancy Sensor with wireless configuration |
