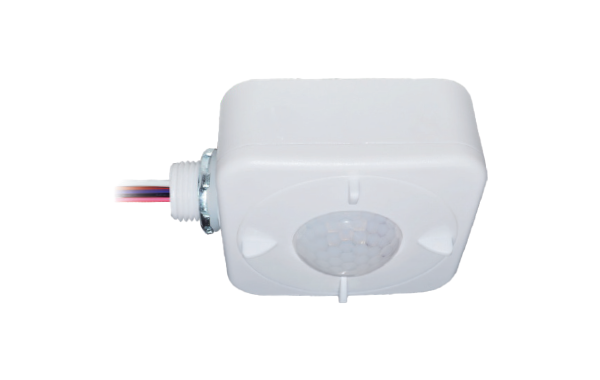

AleoBlue Wireless Bluetooth PIR Occ. Sensor w/ Daylight Harvesting
SPIR-OSDL/BT-FM-AC-306
The SPIR-OSDL/BT-FM-AC-306 is a fixture-mounted Bluetooth® PIR occupancy sensor that enhances lighting control and energy efficiency. It features passive infrared (PIR) motion sensing, daylight harvesting, and 0-10V dimming control, all integrated into a compact design.
With Bluetooth® Mesh connectivity, this sensor enables wireless, scalable control without the need for gateways or additional hardware. Its decentralized architecture eliminates single points of failure, ensuring reliability for commercial and industrial applications.
APPLICATION
Indoor: Open offices, Individual offices, Conference rooms, Classrooms, Retail stores, Hospitals, Lobbies.
FEATURES AND BENEFITS
- Bluetooth® Mesh Certified – Enables reliable, scalable, and decentralized wireless control.
- Passive Infrared (PIR) Motion Sensing – Detects occupancy for automated lighting control.
- Daylight Harvesting – Adjusts light levels based on ambient natural light.
0-10V Dimming Control – Supports smooth dimming with a 25mA max sinking current. - Built-in 5A Relay – Provides direct switching for compatible lighting loads.
- On-board Antenna – Ensures strong and stable Bluetooth® connectivity.
- IP65 Rated – Dust-tight and water-resistant for enhanced durability.
- Easy Reset Options – Supports manual and remote reset for simplified commissioning.
- UL Listed
Warning
- DO NOT install with power applied to device
Operation
- Check the “aleoBlue Commissioning User Manual” for settings and commissioning.
Warranty
- 5-Year Limited Warranty – Covers defects in material and workmanship. See warranty documentation for details.

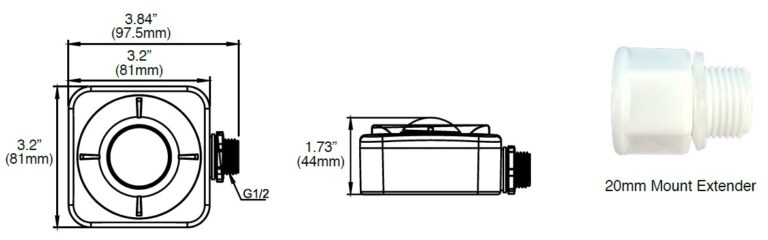

SPIR-OSDL/BT-CM-AC-210 Dimensions

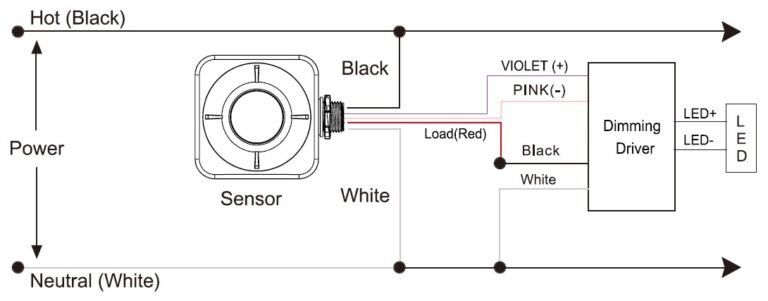

SPIR-OSDL/BT-CM-AC-210 Wiring Diagram
Specification Sheet
