Wireless Networked Lighting Controls
A simple and cost-effective localized networked lighting control system using Bluetooth Mesh.
Commercial Grade Lighting Control Systems

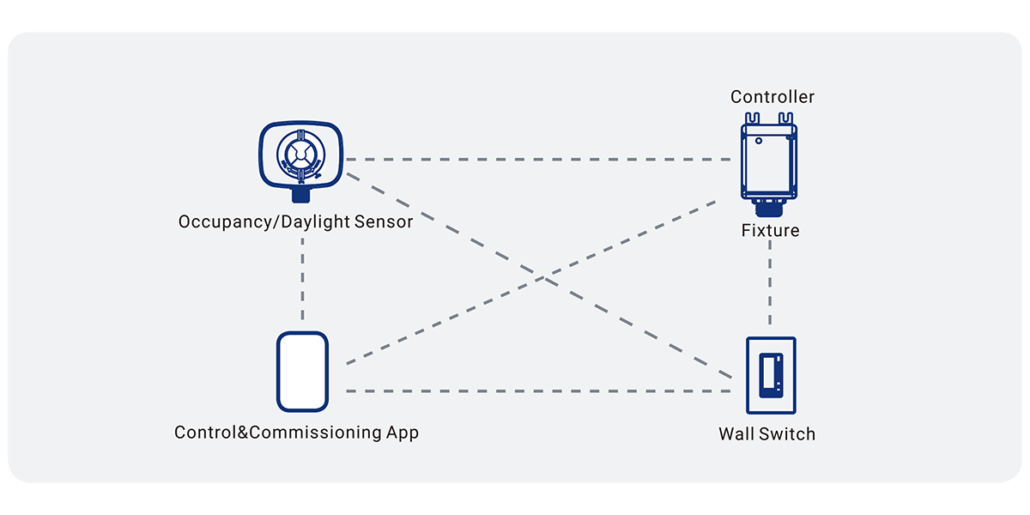

SimplBlue Lighting Controls offers a complete gateway-free wireless system to control lights in a wide variety of applications. The system includes wireless fixture controllers, switches, and occupancy/daylight harvesting sensors all using Bluetooth® wireless technology. In addition to the system devices we also offer a fixture mounted controller and sensor with Bluetooth® technology providing wireless communication and occupancy/daylight harvesting control in one device. Each device has its own address for sending, receiving and sharing control commands through a wireless network. Expandability is easy with each device passing information to the next thus expanding the reach and control throughout the network.
SIMPLICITY
- Provides reliability, redundancy, and easy expandability
- Devices communicate over a secure Bluetooth® wireless network
- Smartphones can configure and control lights with the complimentary SimplBlue Lighting Controls App
- Network bridges and onsite internet are not required
- Controller and Sensors are line powered for long term reliability and performance.
SYSTEM FUNCTIONALITY
- Networking of luminaires
- Individual Addressability
- Occupancy sensing
- Daylight Harvesting/Photocell Control
- High-end Trimming
- Flexible Zoning
- Continuous Dimming
SimplBlue Lighting Controls
Commissioning & Control App
- For iOS or Android smartphone
- Commissioning: Switch on-off, Dimming,
- Colour tuning/ Circadian Rhythms ( Must work with corresponding drivers and led fixtures )
- Flexible zoning/ Scenarios setting/ Scheduling
- Wireless wall switch linkage setting
- Occupancy sensor setting, Daylight harvesting, Photocell control
- Admin control authority sharing with QR code
Luminaire Level Lighting Control (LLLC)
LT-CD BTEZ Series
VOLUMETRIC LED TROFFER – CENTER DIFFUSER
SLB BTEZ Series
SLIM LINEAR LED HIGH BAY
AL/ALS BTEZ Series
LED AREA LUMINAIRE
LTR BTEZ Series
LED TROFFER RETROFIT KIT

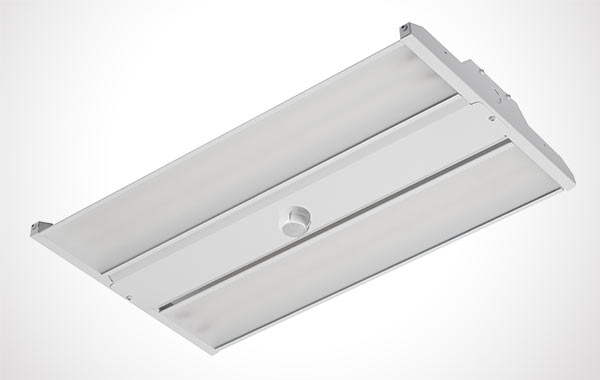

XLB BTEZ Series
ULTRA EFFICIENT LINEAR LED HIGH BAY

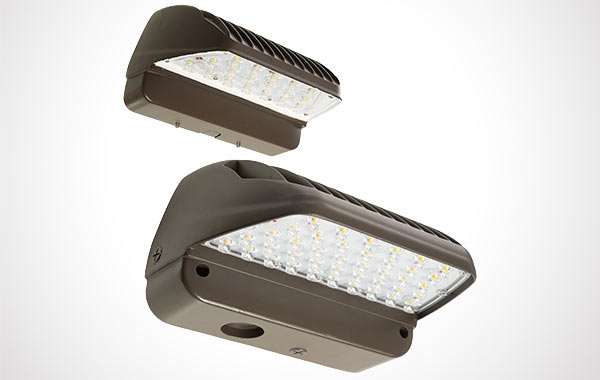

WPL BTEZ Series
LED WALL PACK LUMINAIRE
LPS-BL BTEZ Series
SLIM LED PANEL BACK-LIT
SCB BTEZ Series
LED HIGH BAY
Devices
SPIR-OSDL/BTEZ-PP1-DC-100
- Provides automated individual & group control of light fixtures
- Occupancy (PIR) and daylight harvesting sensor
- ON/OFF/0-10V dimming
- 40′ coverage radius on 40′ ceiling
SPIR-OSDL/BTEZ-AC-100
- Provides automated individual & group control of light fixtures
- Occupancy (PIR) and daylight harvesting sensor
- ON/OFF/0-10V dimming
- 40′ coverage radius on 40′ ceiling
WM-BA-DMFK/BTEZ-100
- Fingertip control over lights in defined zones
- Linkable with One / Multiple zones, 5-buttons
- Switch on-off, Dimming
- Support switching prestored three scenarios
- Faceplates included
WLC/BTEZ-2.5A-UNV-100
- Wireless Bluetooth Control Node Power Pack
- 2.5A max. load.
- 120-277V input
- 0-10V dimming
Commissioning App
- Use IOS Smartphone to Commission Devices
- No Dedicated Remote Needed
- Easy to Use Interface
- Fast Device identification and Grouping
Download SimplBlue Spec Sheets
Easy and Intuitive Commissioning
User-friendly Interface via iOS device. No dedicated remote needed.
Wireless Zoning and Grouping
Reduced labor and installation cost. Luminaires operate in similar fashion within a zone.
Feature-Rich Luminaire Level Controls
PIR occupancy sensing, daylight harvesting, high-end trim
aleoBlue Educational Webinar
Register for a quick introduction webinar to aleoBlue.
Why AleoBLUE ?
- Reduced Labor and Installation Cost: No Wiring, No Central Gateway
- Intuitive and User-Friendly Commissioning Platform
- Optimized for Commercial Spaces of any Size
- Customizable Control Parameters
- Future-Proof with Over-the-Air Firmware Updates
Planning AND Commissioning
Step 1
Create Project and Add Collaborators
Step 2
Create Areas and Upload Floor Plans
Step 3
Add Lighting Zones
Step 4
Define Control Profiles
Step 5
Add Devices to Your Connected Lighting Network
Step 6 (Optional)
Add Wireless Dimmer Switch
Step 7
Test Your Zone / Calibrate

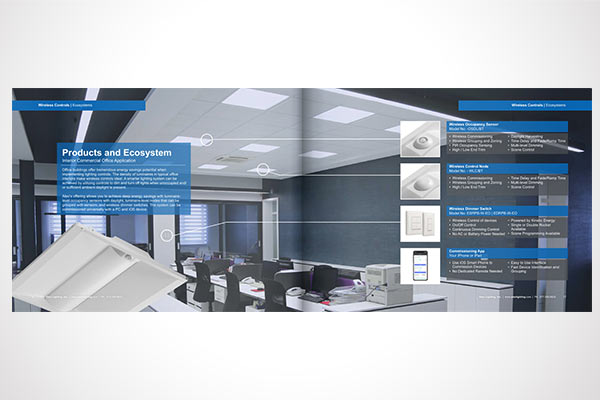

Lighting Ecosystem
A - SimplBlue, Wireless Bluetooth PIR Occ Sensor w/ Daylight Harvesting
Lumaire Level Lighting Control
Model No: SPIR-OSDL/BTEZ-PP1-DC-100
|
|
B - Motion & Daylight Harvesting Sensor
Lumaire Level Lighting Control
Model No: SPIR-OSDL/BTEZ-AC-100
|
|
C - Wall Switch
Lumaire Level Lighting Control
Model No: WM-BA-DMFK/BTEZ-100
|
|
Commissioning App
Your iphone or ipad
|
|
AleoBlue System Components
Wireless Fixture-Mount Signal Booster Kit
Wireless Bluetooth Occ. Sensor with Fixture-Mount Signal Booster Kit
SPECIFICATION FEATURES
Affordable
We are breaking down the barriers to advanced lighting controls by lowering the upfront costs, simplifying the pricing, and increasing the ROI.
Simple
Designed to drastically simplify the commissioning process, our solutions don’t require specialized training or controls engineering expertise.
Utility Incentives
AleoBlue may help qualify for additional rebate incentives for Networked Lighting Controls (NLCs) or Luminaire-level Lighting Controls (LLLCs), which may improve ROI and payback. Check your local utility for more information.
Time-Efficient
With aleoBlue’s commissioning platform, you will set up the entire system faster than ever before. All networking processes are automated, you just need to connect the dots.
Convenient
Our remote planning portal allows you to perform a large portion of the commissioning process from the comfort of your desk. Fine-tuning is completely remote.
Robust Features
Utilizing Bluetooth Mesh standards and technology, our system enables you to implement advanced controls strategies with features, functionality, and specifications that rival the conglomerate control manufacturers.
Code Compliance
AleoBlue may help you comply with federal, state or local energy codes, such as CA Title 24. Our system has the capability of multi-level occupancy sensing with daylight harvesting and continuous dimming.
Deep Energy Savings
AleoBlue allows you to achieve even greater energy savings beyond LED savings. Predefined or customized control profiles allow for deep energy reduction.
SYSTEM COMPARISON
| Function | Aleo Blue | EasySense | SmartCast | Vive |
|---|---|---|---|---|
|
Technology |
Bluetooth Mesh |
Zigbee |
Zigbee |
Proprietary RF |
|
Grouping |
Yes |
Yes |
Yes |
Yes |
|
Zoning |
Yes |
Yes |
Yes |
Yes |
|
Cost |
$ |
$ |
$$ |
$$ |
|
Wireless Dimmer Swith |
Yes |
Yes |
Yes |
Yes |
|
Interoperable |
Yes |
No |
No |
No |
|
Scalable |
Yes |
No |
No |
Yes |
|
Future Proof |
Yes |
No |
No |
No |
|
Ease of Commissioning |
Very Easy |
Difficult |
Difficult |
Moderately Easy |
|
Dedicated Remote Needed? |
No |
Yes |
Yes |
No |
|
Content |
No |
No |
No |
Yes |
