WLC/BT-PWPK

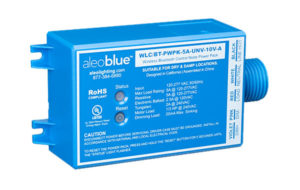

AleoBlue Wireless Bluetooth Control Node Power Pack

The AleoBlue wireless power pack controller provides On/Off switching and 0-10V dimming to a connected lighting load as directed by wireless sensors in the AleoBlue network. The power pack operates on line voltage input (120V-277V). The contractor-friendly form factor conveniently mounts in a KO hole of a standard junction box or luminaire driver box via a threaded chase nipple and lock nut. The unit can also be installed inside luminaire driver boxes.

Download Spec Sheet

APPLICATION

Indoor: Open offices, Individual offices, Conference rooms, Classrooms, Retail stores, Hospitals, Lobbies.

FEATURES and BENEFITS

  • Wirelessly connects to sensors and dimmers
  • Wireless communication allows easy retrofits without the need to pull control wires between devices
  • On/Off and dimming control of a luminaire or group of luminaires
  • Suitable for plug load control
  • Bluetooth Mesh SIG wireless communication makes retrofits easy, no need to pull control wire
  • Plenum Rated (UL 2043)
  • Fast installation onto junction boxes using chase nipple and lock nut

Warning

  • DO NOT install with power applied to device
  • DO NOT expose the device to moisture

Operation

  • Check the “aleoBlue Commissioning User Manual” for settings and commissioning.
  • This device can be reset to the Unprovisioned Mode by pressing and holding the “Reset” button over 5 seconds till the indicator flashes.

Certification

  • UL Listed. All components have UL certification.

Warranty

5-year Limited Warranty. See warranty documentation for more information.

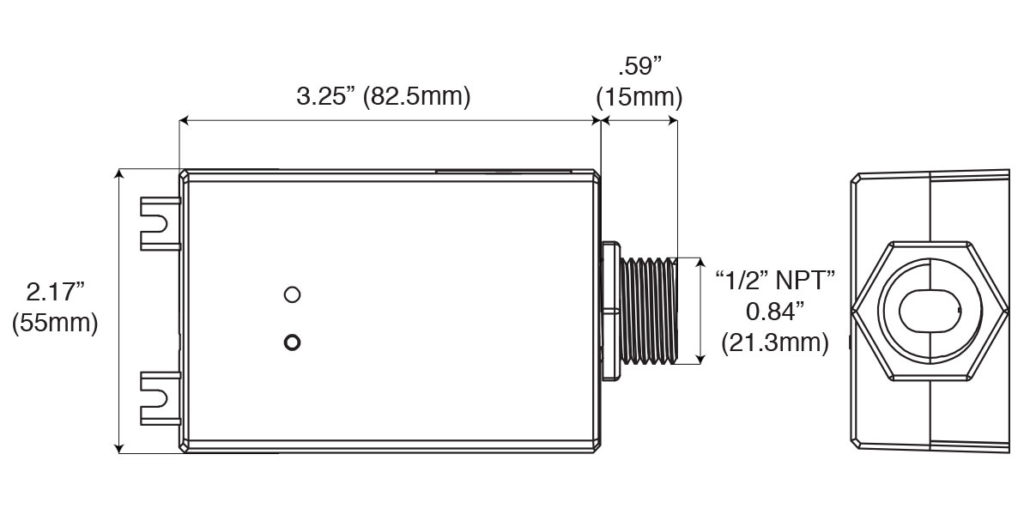

WLC/BT-PWPK Dimensions

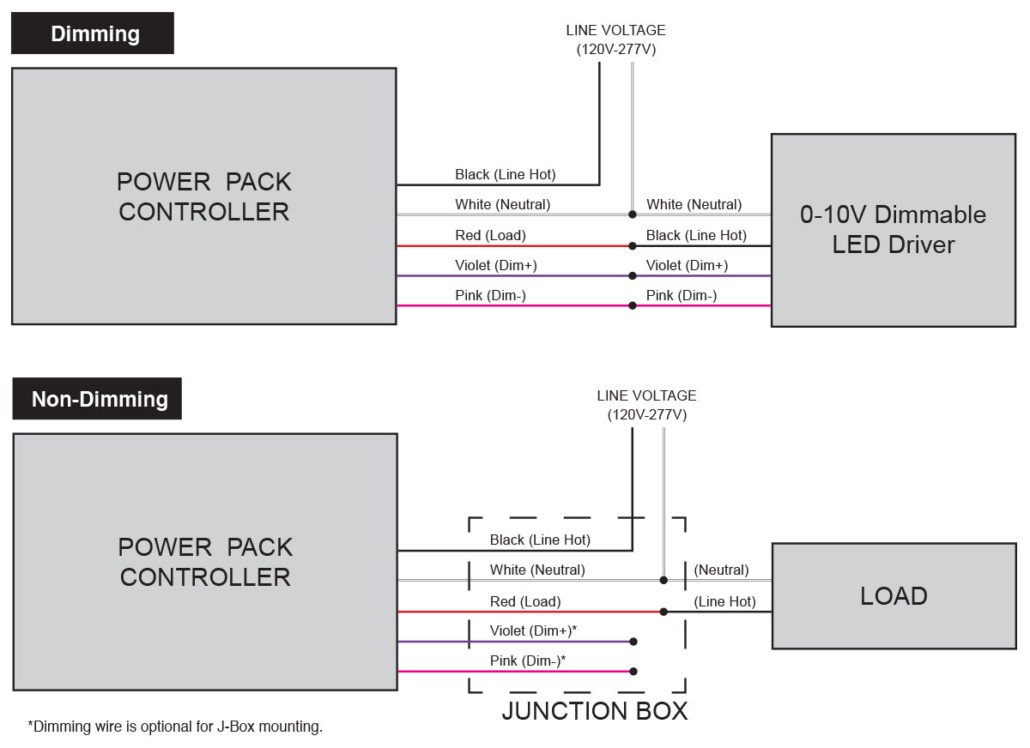

WLC/BT-PWPK Wiring Diagram

Specification Sheet

Images

Model No. General Use Resistive Inductive Tungsten Motor

WLC/BT-PWPK-5A-UNV-10V-A

5A @ 277VAC

5A @ 125VAC
5A @ 250VAC

5A @ 277VAC

1000W, 4A @ 250VAC

0.5 HP @ 120VAC
1HP @ 240V

WLC/BT-PWPK-20A-UNV-10V-A

20A @ 277VAC

18A @ 120VAC
18A @ 277VAC

10A @ 240VAC

2000W, 8A @ 250VAC

0.5 HP @ 120VAC
1 HP @ 240VAC
