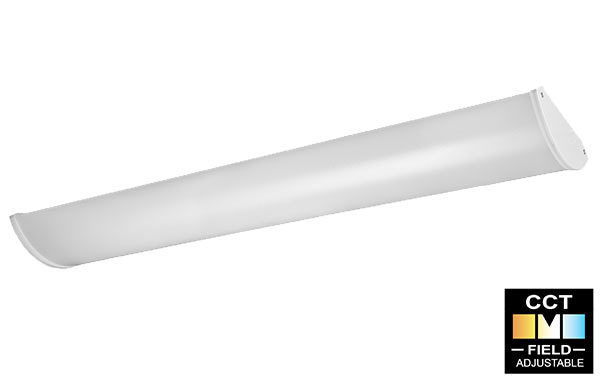

LWS UX Series

LED Architectural Wrap Luminaire – Field Adjustable

The Aleo LWS™ UX series Architectural Wrap Luminaire delivers industry-leading performance with deep energy savings and continuous dimming. The curved diffuser offers visually-pleasing illumination and aesthetics. This versatile luminaire transforms spaces with a high-end look, providing comfortable illumination for a myriad of applications.

Download Spec Sheet


Excellent for various surface-mounts and suspended applications: offices, conference rooms, restrooms, hallways, corridors, stairwells.


  • Reduces Inventory and Increases Flexibility
  • Field Adjustable CCT and Lumen Output
  • Long life, reduced maintenance
  • 7-year Limited warranty
  • UL


Modular LED and driver allows for serviceability and maintenance. Luminaire features matte white durable finish. Convenient installation with hanging gear-tray.


Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation. Comes equipped with luminaire quick-disconnect.

Installation and Mounting

Luminaire back housing includes holes and slots for various mounting methods. Suitable for suspension, surface, or pendant mount.

Controls and Dimming

Continuous dimming (0-10V) comes standard. Suitable for use with dimmers, sensors, daylight harvesting and other control strategies to achieve deeper energysavings and code compliance.

Field Adjustable CCT

Increased versatility and reduced inventory burden. Color Temp. can be adjusted in the field by selecting (3) different CCTs via switch on driver box.

Optical Systems

Reflector systems features highly reflective coating and delivers balanced, comfortable illuminance for productive spaces. Curved, ribbed, diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.


UL Listed. All components have UL certification. UL Class 2. Driver: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2.


7-year Limited Warranty. See warranty documentation for more information.

LWS UX Line Drawing

Specification Sheet


Form Factor Model No. Nom. Wattage 3500K Lumens 4000K Lumens 5000K Lumens


25 3550 3675 3575
30 4200 4350 4230
34 4658 4828 4692

Model No. Description
EM700 Emergency battery backup, 700 lm
EM1400 Emergency battery backup, 1400 lm
OSDL/BT AleoBlue Wireless Bluetooth Occupancy Sensor
WLC/BT AleoBlue Wireless Bluetooth Lighting Control Node
OSDL/HF/IR Multi-Level HIgh Frequency Occ Sensor IR Commissioning
