LTR BTEZ with SimplBlue

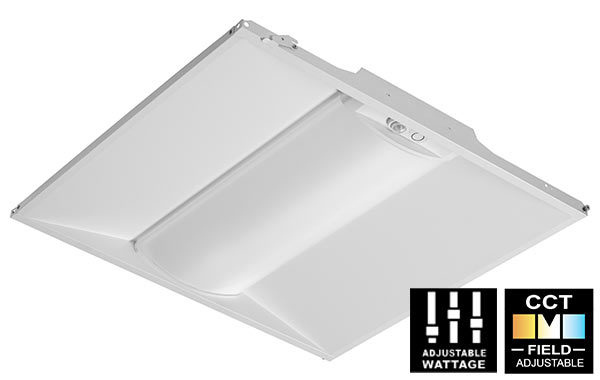

LED Troffer Retrofit Kit – SimplBlue Bluetooth Mesh Sensor
The Aleo LTR™ BTEZ Series Troffer Retrofit Kit delivers industry-leading Versatility with deep energy savings and continuous dimming. Easy and quick installation reduces labor cost and optimizes ROI. The retrofit kit eliminates the need to replace existing luminaire housing, which reduces install time and disposal/removal costs. The precision-formed diffuser produces comfortable and pleasant illumination, enhancing productive spaces in various applications.
Now Quick Ship items equipped with our SimplBlue Wireless Bluetooth Mesh System (NLC) occupancy sensor with daylight (LLLC).
APPLICATION
Provides architectural aesthetics for retail, schools, offices, healthcare, and other various commercial applications.
FEATURES and BENEFITS
- SimplBlue Wireless Bluetooth Mesh Networked Lighting Control System (NLC)
- DLC NLC5
- Luminaire Level Lighting Control (LLLC) for maximum energy savings, versatility, and rebate incentive optimization
- Reduces Inventory and Increases Flexibility
- Field Adjustable CCT
- 7-year Limited warranty
- UL and DLC Premium
Construction
Simple construction with minimal parts allows for easy handling and installation. Luminaire features matte white durable finish.
Optical System
Reflector systems features highly reflective coating and delivers balanced, comfortable luminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.
Certifications
UL Classified. All components have UL certification. UL Class 2. Driver: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2.
Warranty
Electrical
Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation. Comes equipped with luminaire quick-disconnect.
Field-Adjustable CCT
Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by using SimplBlue app to set CCT / lumen level.
Installation and Mounting
Installs in most troffer luminaires. Retrofit kit fits within troffer and ceiling T-bar grid, eliminating need to remove existing fixture housing.
Controls / Dimming
2X2 LINE DRAWING
2X4 LINE DRAWING
| Form Factor | Model No. | Nom. Wattage | 3000K Lumens | 3500K Lumens | 4000K Lumens | 5000K Lumens |
|---|---|---|---|---|---|---|
| 2’x4′ |
LTR-24-UXL/8CT G5 ECO-HD/OSDL/BTEZ |
45W |
5850 |
5985 |
5985 |
5850 |
| 2’x2′ |
LTR-22-UXL/8CT G5 ECO-HD/OSDL/BTEZ |
30W |
3780 |
3930 |
3960 |
3840 |
| Model No. | Description |
|---|---|
| -EM700 | Emergency battery backup, 700 lm |
| -EM1400 | Emergency battery backup, 1400 lm |
