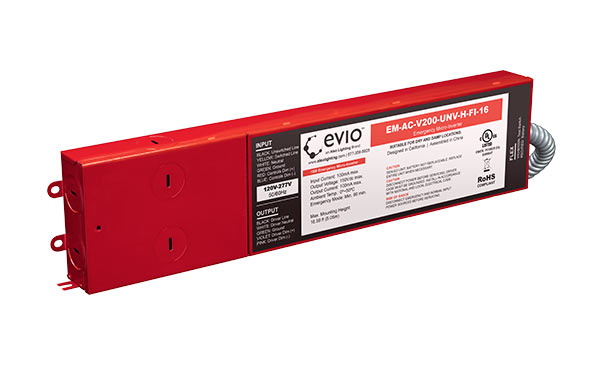

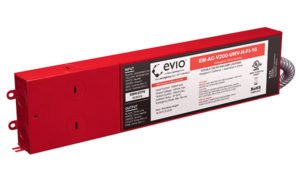

EM-AC Series
Emergency Micro Inverter
The AC Emergency Battery Backup Micro-Inverter offers an innovative and convenient solution to emergency lighting where access to luminaire LED arrays is not feasible or inconvenient. The auxiliary backup unit is field-installed with various luminaires and retrofit kits, ranging from downlights to LED panels, to offer illumination during emergency egress conditions. There’s no need to access the luminaire driver’s output wires, meaning easy wiring and installation. The EM Micro-Inverter has an innovative built-in junction box for added versatility and installation convenience.
APPLICATION
Emergency LED Driver for backup lighting, used for LED arrays.
FEATURES AND BENEFITS
- Universal Voltage (120V-277V)
- Constant Power Output Control
- Slim profile / form factor
- Open Circuit Protection
- Short Circuit Protection
- Sound Rated A
- UL/cUL R/C
- FCC Part 15 Class A
- 5-year Limited Warranty
| Input Voltage | 120-277VAC |
| Max. Output Power | 15W |
| Battery Type | LiFePO4 |
| EM Illumination Time | 90 minutes min. |
| Recharge Time | 24 hrs. |
| Compatibility | 100W max. LED Luminaire w/ 0-10V dimming |
| Ambient Temperature | 0ºC – 50ºC |
